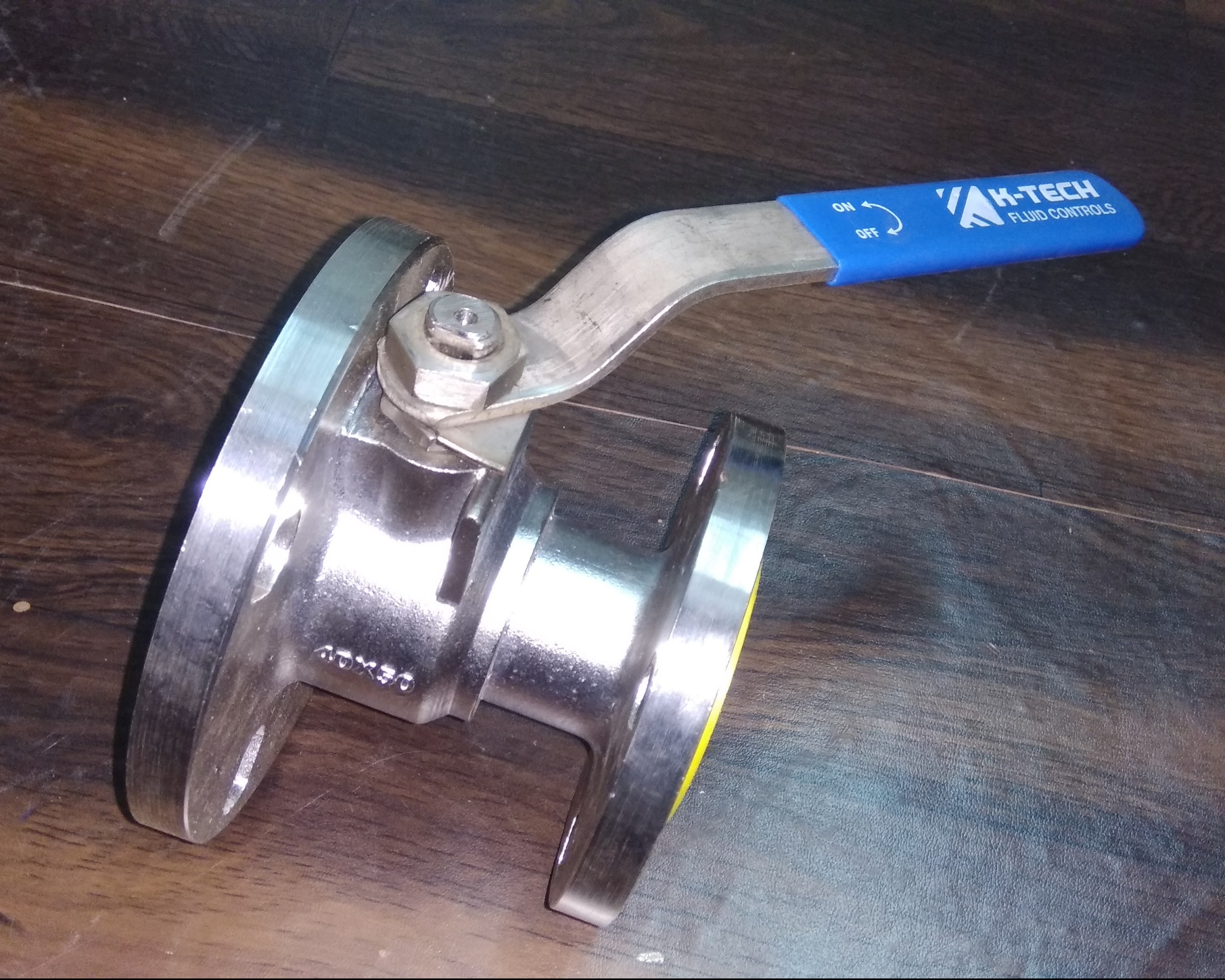

K-TECH Make Flush bottom ball valves are specialized flow control devices designed to eliminate dead space between the valve closure element and the interior wall of a vessel, reactor, or tank. By mounting flush with the bottom interior surface, these valves prevent product accumulation, stagnation, and contamination, making them essential for hygienic and high-purity industrial processes.
Key Technical Specifications & Design Features:
Mounting Configuration:
Tank-bottom welded pad, flanged, or custom contour designs matching vessel curvature to ensure zero dead leg.
Valve Ball & Cavity Design: Solid ball design that completely seals off the vessel outlet. In the open position, the ball's port aligns smoothly with the internal bore, allowing unimpeded drainage.
Seat Design: Spring-loaded or pressure-energized seats (PTFE, PEEK, TFM, or reinforced metals) that maintain a constant tight seal against thermal expansion, wear, and pressure fluctuations.
Actuation Options: Manual lever/handwheel, pneumatic piston actuators, or electric actuators equipped with feedback sensors for automated processing lines.
Materials of Construction: Wetted parts typically forged from high-grade stainless steels (316L), Hastelloy, Monel, Titanium, or specialized alloys to resist aggressive chemicals and corrosion.
Surface Finish: Electro-polished and mechanically polished internal finishes down to $Ra le 0.4 , mu m$ (or lower) for aseptic pharmaceutical and food-grade applications.
Primary Industrial Applications
Pharmaceutical & Biotechnology: Active Pharmaceutical Ingredient (API) reactors, crystallization vessels, and sterile buffer tanks where cross-contamination must be rigorously avoided.
Chemical & Petrochemical: Polymer production, acid handling, and batch reactors requiring robust containment of hazardous or corrosive chemicals.
Food, Beverage & Dairy: Confectionery processing, syrup tanks, and sauce mixing vessels where clean-in-place (CIP) and sterilization-in-place (SIP) efficiency is mandatory.
Pulp & Paper / Mining: Slurry discharge and high-solid fluid handling where standard valves clog or trap sediments.
