An industrial sight glass (or sight flow indicator) is a transparent glass window or tubular assembly installed directly into pipelines, pressure vessels, tanks, or reactors. It allows operators to visually observe process fluids, gas flow, liquid levels, and internal reactions in real time without opening the system or interrupting operations.
Core Applications
K-TECH Make Sight glasses are critical inspection components used across high-pressure, high-temperature, and corrosive chemical environments:
Chemical & Petrochemical Processing: Monitoring fluid clarity, color changes, phase separation, crystallization, and chemical reaction progress inside pressurized reactors and distillation columns.
Oil & Gas Operations: Inspecting crude oil pipelines for foam, sediment, water contamination, or gas bubble entrapment during transfer operations.
Pharmaceutical & Biotechnology Manufacturing: Verifying batch purity, sterility, clean-in-place (CIP) rinse completion, and fermentation stages in stainless steel vessels.
Boiler & Steam Systems: Monitoring steam traps, boiler water levels (via level gauge glass), condensate return lines, and thermal fluid movement.
Food & Beverage Production: Checking line fill, liquid clarity, product color, and sanitization flows in dairy, brewing, and juice processing lines.
Power Generation & Hydraulics: Verifying oil level, flow rate, and clarity in heavy machinery lubrication systems and hydraulic fluid reservoirs.
Key Benefits of K-TECH Make Sight Glass:
1. Real-Time Visual Verification
Provides immediate, direct physical inspection of process media—allowing plant engineers to confirm flow direction, velocity, fluid phase (liquid/gas), color, and turbulence without relying solely on digital sensors.
2. Early Fault & Anomaly Detection
Allows operators to instantly spot process anomalies before they escalate into equipment damage or system failure:
Presence of entrained air, steam bubbles, or cavitations
Particulate accumulation, scaling, or corrosion buildup
Unexpected discoloration or contamination in fluid lines
Blocked or clogged piping runs
3. Safety & Containment
Equipped with heavy-duty borosilicate or fused glass mounted in high-tensile metal housings (stainless steel, carbon steel, or exotic alloys), sight glasses maintain system pressure seal integrity—preventing chemical leaks, hazardous emissions, or pressure loss during inspection.
4. Process Quality Assurance
In hygienic and high-purity sectors, visual monitoring through sight glass fittings helps ensure batches meet purity specifications, verifying cleanout procedures between batches to prevent cross-contamination.
5. Low Maintenance & Cost Savings
Unlike electronic instrumentation, manual sight glasses require no external power source, signal wiring, or software calibration, offering highly reliable visual verification with long operational lifespans.

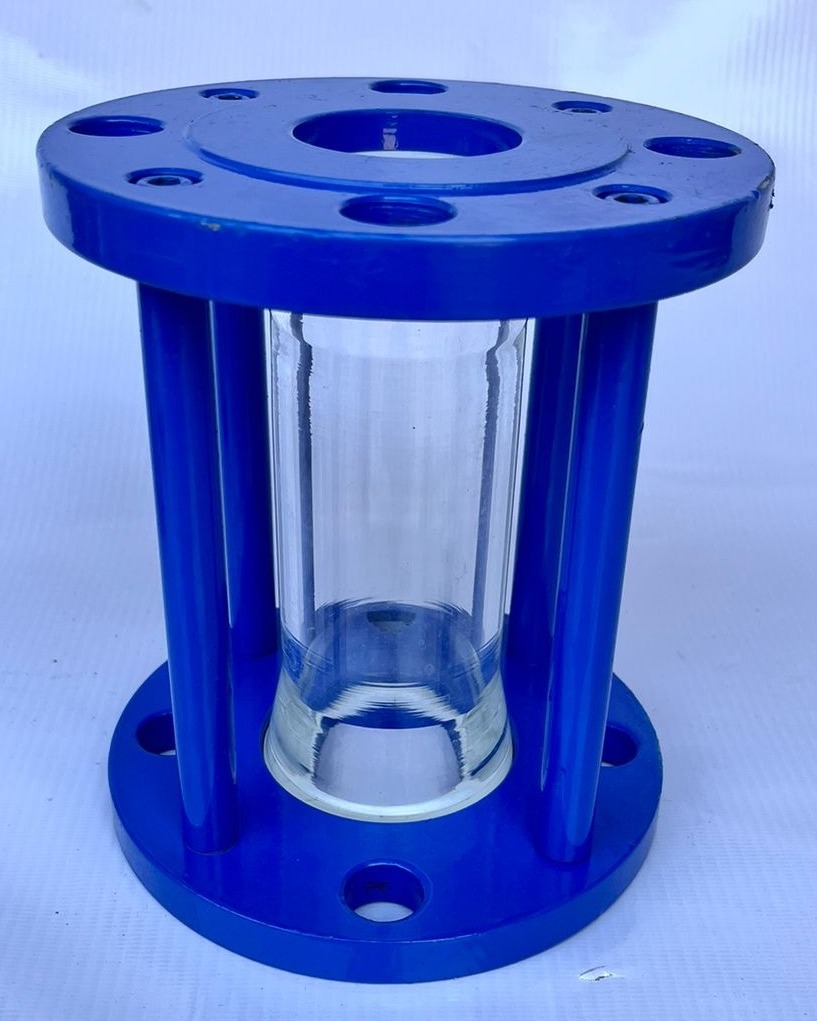

Inline Sight Flow Indicator
Vessel / Tank Sight Glass
Rotor / Flapper Indicator
Drip Tube Sight Glass
Double Window Sight Glass
