CAVITY SCREW PUMP MANUFACTURERS IN ANKLESHWAR

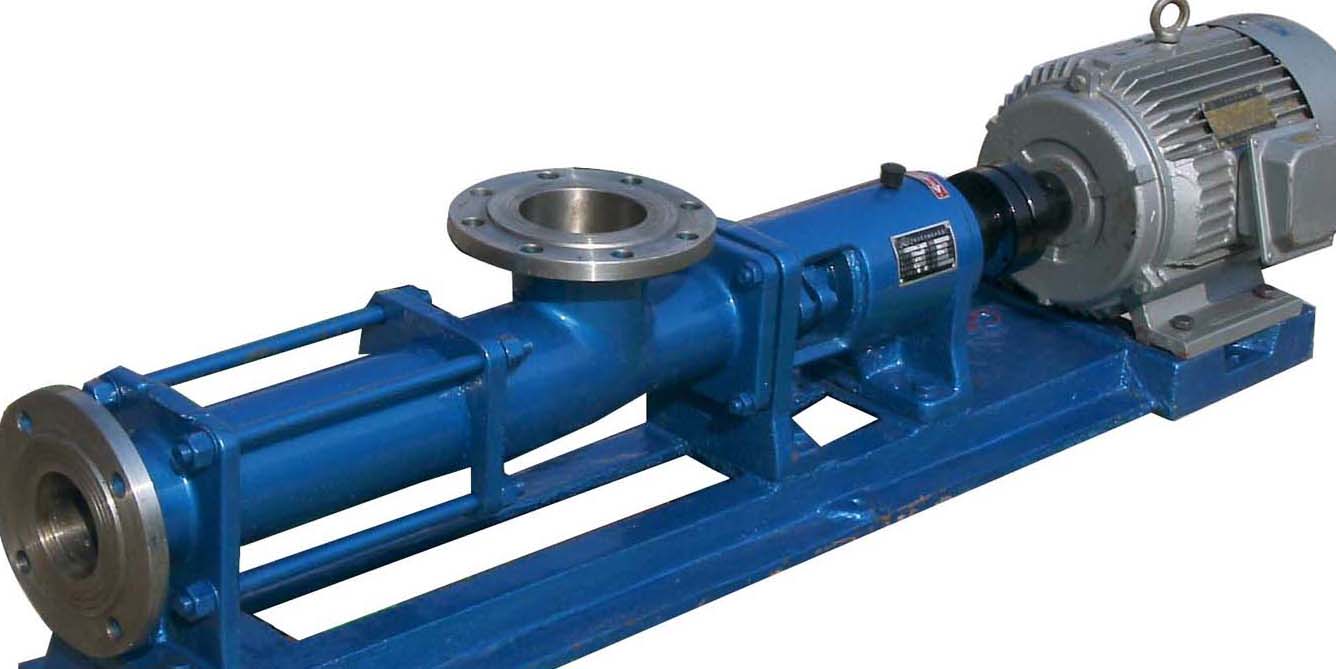

PROGRESSIVE CAVITY SCREW PUMP
Operating Range
Capacity :Up to 145 M3/hr
Head :Up to 250 mtr
Discharge Size :Dn 25 to 150 mm
Temperature :Up to 120°C
Speed :Up to 600 rpm
Pressure :Up to 25 kg/cm2
Applications
Sewage effluent & Water treatment plant.
Sugar, Starch, Cement, Pulp & Paper industries.
Ceramics, Chemicals, Fertilizers, Soap & Detergents, Cosmetics.
Paint, Varnish, Petrochemicals, Vegetable Oils, Mining, Steel, Rubber.
Construction, Manmade fibers, Fisheries, Oil exploration.
Pharmaceuticals, Cattle feed, Brewery & Distillery, Power.
Dairies, Winery, Food & Beverages, Abattoir & Meat processing.
Plantations, Fruit processing, Dye stuff, Textiles
Materials
SS-316, SS-316 L, SS-304, SS-304L, duplex stainless steel, super duplex stainless steel, cast bronze, cast steel, cast iron, hastalloy-B & C, alloy-20 etc
Stator:
Natural, Nitrile, High Nitrile, EPDM, Chloro-sulphonated Rubber, Fluoroelastomer
Rotor:
Case hardened steel, alloy steel, HCP, stainless steel, up / HCP
Features
Single rotating element, progressing cavities are generated which deliver a uniform, metered & non-pulsating flow.
Head developed is independent of the rotational speed, where as the capacity is proportionate to the speed.
Inherently self-priming, the pumps can work on snore & do not require a foot valve.
Can Handle solids in suspension or medias containing a high percentage of solids.
Suction lift capabilities of up to 9.5 mtr. and effective even in high vacuum conditions.
Minimum degradation of shear-sensitive media & can also Handle highly viscous materials having pseudo-plastic characteristics.
Due to the reversible rotation capabilities, progressive cavity pumps can perform with equal efficiency in either direction.
Rotors turn inside a resilient stator & thus generate little noise.
