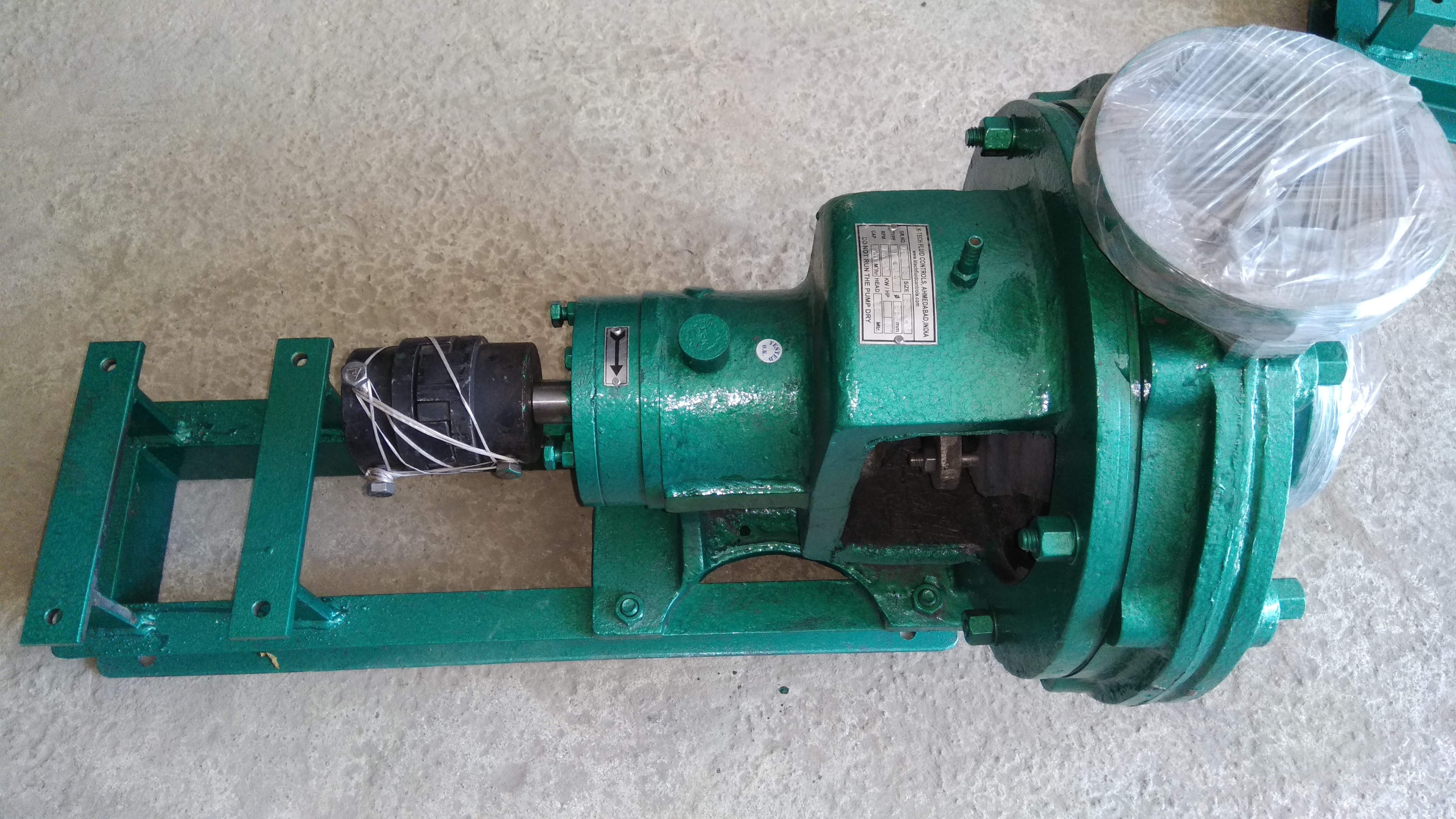

RUBBER LINING PUMP
RUBBER LINED PUMP
CAPACITY: - UP TO 150M3/H HEAD :- UP TO 35 MTRS.
DELIVERY SIZE :- UP TO 125 MM
SPECIFIC GRAVITY :- UP TO 2 LIQUID
TEMP. :- UP TO 80°C (WITH NATURAL RUBBER) UP TO 120°C (WITH SYNTHETIC RUBBER)
HARD RUBBER :- UP TO 65 ‘ SHORE D SCALE
SOFT RUBBER :- U4P TO 60’ SHORE A SCALE
MATERIAL OF CONSTRUCTION
PUMP CASING, WEAR PLATE SEAL COVER AND IMPELLER INSET :- RUBBER LINING ON CAST IRON OR DUCTILE IRON
HARD RUBBER :- NATURAL RUBBER [EBONITE]
SOFT RUBBER (ON REQUEST) :- BUTYL RUBBER / NITRITE RUBBER / NEOPRENE RUBBER
SHAFT :- STAINLESS STEEL 316 L OR EN – 8
SHAFT SLEEVE :- STAINLESS STEEL 316 L OR ALLOY – 20 SHAFT
SEAL :- ACID RESISTANT GLAND PACKING (PTFE)
» APPLICATION
› CAUSTIC SODA, BRINE, HYDROFLUORIC ACID, AMMONIUM SALT SOLUTION, BLEACHING SOLUTION
› EFFLUENTS, CALCIUM HYPOCHLORITE, POTASSIUM CHLORIDE, SODIUM CHLORINE, ZINC CHLORIDE,
› PHOSPHORIC ACID, NITRIC ACID, DYES & CHEMICALS WITH FREE CHLORINE, SODIUM BISULPHATE,
› MOTHER LIQUOR, AMMONIA SOLUTION, CHLOR – ALKALI ELECTROLYSIS, DEMONIZED WATER, RIVER WATER,
› FILLER PRESSURE FOR DYES, SEA WATER, LIME PUMP IN CPW PLATE, STAPLE FIBER PLANT (BLEACH LIQUOR),
› DILUTE H2SO4 WATER TREATMENT, CYCLONE FEED, COAL & POWER PLANT ASH, ABRASIVE SILT,
› RIVER-BED GRAVEL, FLY ASH SLURRY, IRON ORE SLURRY, COPPER OX CHLORIDE POTASSIUM HYPOCHLORITE,
› SUSPENSION WITH FINE ABRASIVE SOLID
» SPECIAL FEATURES
› CENTRIFUGAL SINGLE STAGE BACK PULL OUT DESIGN.
› CONTACT PARTS ARE LINED WITH NATURAL RUBBER (EBONITE), BUTYL RUBBER OR NEOPRENE RUBBER.
› SIMPLE EXTERNAL AXIAL ADJUSTABLE FOR IMPELLER ADJUSTMENT.
› SIMPLE AXIAL ADJUSTABLE TO MAINTAIN IMPELLER CLEARANCE.
› POWER INPUT 3 HP / 5 HP / 7.5 HP / 10 HP / 15 HP / 20 HP WITH 940 RPM / 1440 RPM / 1880 RPM / 2200 RPM
› CAPACITY UP TO 125 M3/H AND 35 MTRS HEAD
› PUMP IS MOUNTED ON HEAVY STEEL STRUCTURE FRAME (BASE PALTE)
› PUMP IS WELL ALIGNED WITH ELECTRIC MOTOR BY RIGID COUPLING
› BETTER INTERCHANGEABILITY OF PARTS › EASY MAINTENANCE
› STURDY CONTRACTION
