ROTARY GEAR PUMP MANUFACTURING ANKLESHWAR

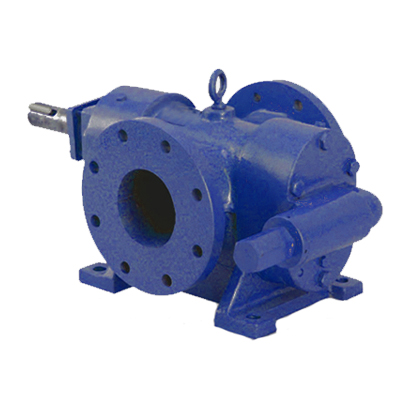

Multi Purpose Rotary Gear Pump
Multi Purpose Rotary Gear Pumps With Double Helical Gears
Operating Range
Capacity :Up to 195 M3/hr
Head :Up to 100 mtr
Discharge Size :Dn 12 to 200 mm
Temperature :Up to 200°C
Speed :Up to 1500 rpm
Pressure :Up to 10 kg/cm2
Applications
To deliver a variety of Light & Viscous liquids such as Oil, Fats, Coal, Tar, Paint and Molasses.
Highly viscous or semi viscous liquids like Ammonia, Bleaches, Coal, Tar, Dyes, Fruits Juice, Gasoline, Glycerin, Glue and Grease.
Paints, Soap solution etc...
Materials
SS-316, SS-316 L, SS-304, SS-304L.
duplex stainless steel
super duplex stainless steel, cast bronze, cast steel, cast iron
hastalloy-B & C, alloy-20 etc...
Features
Self priming pumps with five mtr. suction lifts.
Compact in size, low noise, high efficiency.
Easy maintenance, longer life, economical.
An inbuilt pressure relief valve.
Bush bearing with a heavy shaft.
Double helical gears to reduce axial thrust.
Continuous duty.
Handle multiple liquids.
Unique design.
