HORIZONTAL CENTRIFUGAL END SUCTION PUMP MANUFACTURERS IN AHMEDABAD.
END SUCTION CENTRIFUGAL PROCESS PUMP Manufacturers Ahmedabad, Gujarat, India. We are supplier, exporter and manufacturers of CENTRIFUGAL PUMP, Industrial Valve and Industrial Pump, in all over India and overseas.

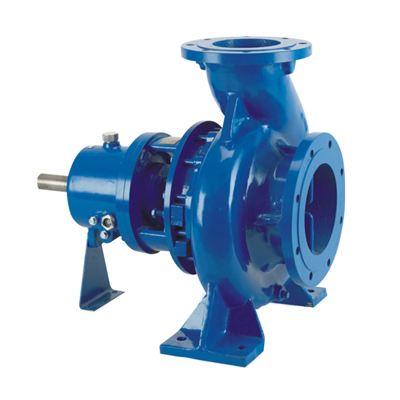

Horizontal Centrifugal End Suction Pumps
Operating Range
Capacity :Up to 1500 M3/hr
Head :Up to 150 mtr
Discharge Size :Dn 32 to 300 mm
Temperature :Up to 350C
Speed :Up to 3500 rpm
Pressure :Up to 15 Kg/cm2
Applications
Chemical, Refinery, Petrochemical & Process.
Pulp & Paper, Sugar, Starch industries.
Fertilizer, Textiles, Laminate, Steel industries.
Air-condition plants, Fire Fighting application.
Power plants, Desalination Plants, Sea Water.
Marine, Irrigation, Building service, Food industries.
Salt, Rubbe, General industrail services etc....
Materials
SS-316, SS-316 L, SS-304, SS-304 L
Duplex stainless steel
Super duplex stainless steel
Cast bronze, cast steel, cast Iron
Hastalloy - B & C, Alloy-20 etc.....
Features
Back pull out design
Conform to iso 2858 dimensions
High efficiency hydraulic design
Heavy duty shaft, sleeve and bearings
Low NPSH
Noise and maintenance free
Single and double mechanical seal
Steady head and capacity
One roller bearing on pump end, two angular contact ball bearing with oil lubricated.
Several flange drilling options according to valid standards.
Suitable with V-belt drive or direct coupled with a motor.
