FLUSH BOTTOM VALVE MANUFACTURERS IN ANKLESHWAR

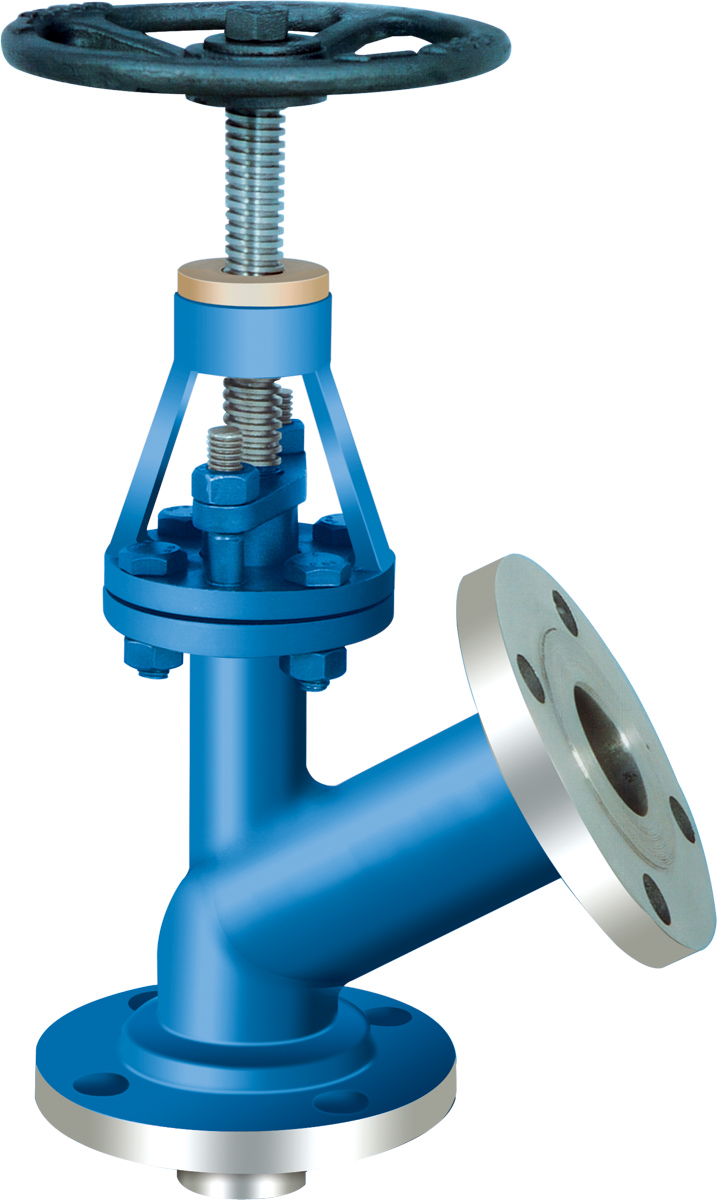

K-TECH FLUID CONTROLS Manufacturer & Exporter of All Major type of Y Type Flush Bottom Valves & Ball Type Flush Bottom Valve. K-TECH Industrial Valves Y type Flush Bottom Valves are Manufacture of Investment Casting with Higher Grade S.S. Quality & Heavy Duty Design. Y type Flush Bottom Valves Can Be Supplied by Manual Handle Wheel Operated, Gear Operated and Pneumatic Cylinder Operated.
Various Type of Flush Bottom Valves are Manufactured and Supplied by K-TECH FLUID CONTROLS Industrial Valves are Like Y type Flush Bottom Valves, Y Type Fabricated Flush Bottom Valves, Ball Type Flush Bottom Valves, Jacketed Type Flush Bottom Ball Valves, Reduce Port Type Flush Bottom Valves, Y” Type Flush Bottom Valves With Handle Operated, Y” Type Jacketed Flush Bottom Valves, “Y” Type Actuated Flush Bottom Valves, Lined Flush Bottom Valves, “Y” Type Flush Bottom Ball Valves With Pneumatic Actuator Operated, Y type Lined Flush Bottom Ball Valves, Rotary Pneumatic Actuator Actuated Flush Bottom Ball Valves, Y type Flush Bottom Ball Valves Pneumatic Cylinder Operated.
Features Of K-TECH FLUID CONTROLS Y type Flush Bottom Valve
Flush Bottom Valves are Specially Design for Heavy Slurries Lines, Viscous Liquid and Sludge Type Media.
Flush Bottom Valves Provide Tight Shut off With Zero Leakage.
Flush Bottom Valves are lower in Cost.
Flush Bottom Valves has Low Maintenance.
Flush Bottom Valves are Available in Jacketed Type, for Hot and Cold Line Provision.
Material Option Of Y type Flush Bottom Valve
Size: 1 “ TO 8”
Body: Astm A 216 Gr Wcb /Cf8/Cf8M
Ball: Aisi 304/ Aisi 316
Stem: Aisi 304/ Aisi 316
Stem Seals/ Gland Packing: Ptfe / Gft
Ball Seat: Ptfe / Gft
Yoke Sleeves: Bronze
End: Wafer Type Flange Type Ansi B16.5/ Bs10 Table D, E, F
Mfg Standard: Bs 5351
Testing Standard: Bs 6755 Part 1
RANGE :
FLUSH BOTTOM TANK BALL VALVE
FLUSH BOTTOM BALL VALVE
JACKETED FLUSH BOTTOM VALVE
MANUAL FLUSH BOTTOM VALVE
SS FLUSH BOTTOM VALVE
SANITARY FLUSH BOTTOM VALVE
Y TYPE FLUSH BOTTOM VALVE
Y TYPE FLUSH BOTTOM VALVE
LINED FLUSH BOTTOM ANGLE VALVE
LINED FLUSH BOTTOM VALVE
FLUSH BOTTOM ANGLE VALVE
