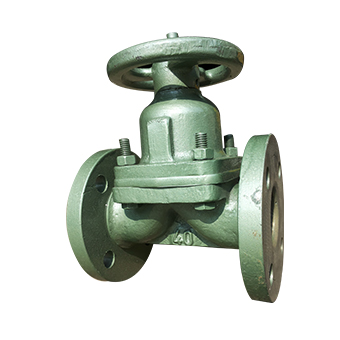

Diaphragm Valve Manufacturer in Chennai. K-TECH FLUID CONTROLS Rubber lined Diaphragm (also called membrane ) valve is recommended for application involving slurring, fluids with suspended solids, corrosive fluids etc. This valves provide tight shut off , primarily designed for on-off services. The Body material is CI, SG iron, CS Lined and Unlined both types are manufacture by us. The Lined Diaphragm Valves are lined with Natural Rubber, Ebonite Rubbe, Neoprene, Hypalon and customized rubber etc. we can do the Lining of other materials as per customer requirements. Salient Features Type: Weir/straight through Body Material: Cast iron/Cast steel/316 /Gunmetal/Alloy 20 Unlined & Lined PFA, FEP, ETFE & ECTFE ( Hallar ) & PVDF Lined & Plastic Valves, etc. Body Rating: ANSI Class 125/150 lbs Body Lining: Neoprene/Natural/Rubber/Ebonite/Glass/Teflon/EPDM/FRP, Food grade etc. Body Diaphragm: Natural Neoprene, Hyplon, Butyl, EPDM, PTFE with neo, EPDM PAD, Viton, Nitrile Buna-N, Food grade, etc. End Connections: Conforming BS-5156 flanged to ANSI B-16.1 Class 125/150 lbs, DIN-3202-F1, PN-10/PN-16 etc. Sizes: 1/2" to 12".
