Basket Filter manufacturer.

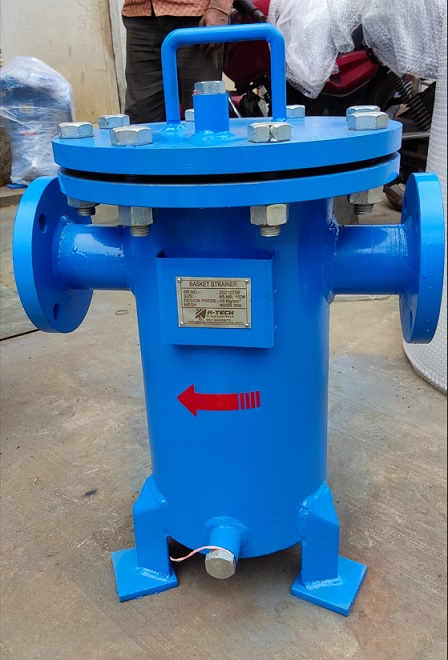

K-TECH bucket filter is often used to separate coarse particles. The filter is easy to remove and clean. We K-TECH provide filter baskets with flow direction from inside to outside or from outside to inside, depending on the soil load and the application. K-TECH Basket filter designs are available in single baskets, double baskets, multiple baskets and pleated baskets. Our MS/CS MOC bucket filter is colored, hot dipped galvanized and powder coated. SS MOC basket filters are available in both glass polish and glass bead blasted finishes.
K-TECH RANGE
Simplex Bucket/Basket Strainer
Simplex Bucket/Basket Filter
Multi Bucket/Basket Strainer
Multi Bucket/Basket Filter
Duplex Bucket/Basket Strainer
Duplex Bucket/Basket Filter
Jacketed Type Bucket Strainer/Filter
Jacketed Type Duplex Bucket Strainer/Filter
POT Type Strainer
Y Type Strainer
Conical Strainer
T Type Strainer
Self-Cleaning Filter
Technical :
Line Size: NB to 30 NB
End Connections: 150# & 300# Flanged, Table E & Table F Flanges, DIN Standard Flanges Butt Weld,
NPT/BSP Threaded, Hose Pipe Conn., Tri Clover Adaptor, SMS Union/Dairy Conn.
Material of Construction: CS, MS, SS304, SS304L, SS316, SS316L, SS317L
Operating Pressure: 0 to 50 Bar
Operating Temperature: 15 Deg. C to 500 Deg. C
Flow Rate: Up to 1000 M3/Hr. & More
Filtration Rating: 1 Micron to 6000 Micron & More
Top cover with nut & bolts type or quick opening type
K-TECH BASKET FILTER BENEFITS
Easy to clean
Low Pressure drop
Large area
Easy to operate and maintenance
Positive Sealing to prevent bypass
Customized design
High dirt load holding capacity
In Standard design filtration area is 4 to 6times of Inlet/Outlet pipe area
Arrangement for back wash if required
WIDELIY USED FOR
Refineries and Petrochemicals
Power Plants
Oil & Gas
Water filtration and Cooling Towers
Chemical Industries
Automobile Industries
Steel Industries, Metals & Minerals
Textile Industries
Dairy and Food Industries
Dyes, Inks and paints Industries
Cement Industries
Fertilizers Industries
Pharmaceuticals
Coolant Oils and Cutting Fluids
