Axial Flow pump Manufacturer in Ahmedabad.
Axial Flow pump Manufacturer and supplier from Ahmedabad, Gujarat, India.
Axial Flow Pump / Propeller Pumps is unmatched in the industry for high volume / Low head pumping requirements, especially when corrosive and/or abrasive solutions are involved.

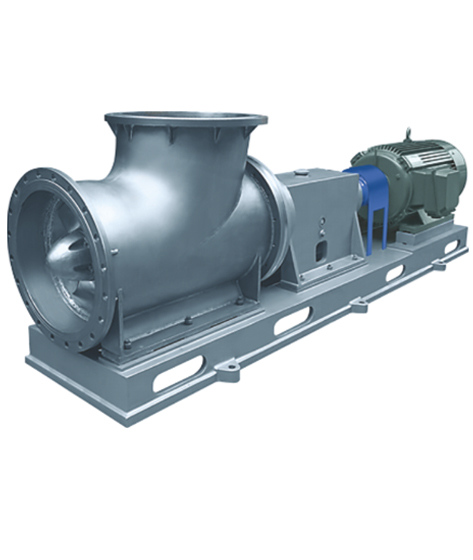

K-TECH Axial Flow pump generates flow by the thrust or lift action of rotating axial vanes of the impeller. The pump has an elbow that directs the flow through the suction and out the discharge end of the pump. It can be used in the top or end suction configuration depending upon the need and Flange dimensions, bolt circle and holes comply with ANSI B16.5, 150#. The back pull out design (up to 14" size) allows for easy maintenance and repair as the rotating element may be removed without disturbing the pipe work. Pump has wear rings as standard and lifting eye on bearing bracket.
Model / type - KTFC-AF
Suction & Discharge Diameter (inch) Up to - 14"
FLANGE DRILLING
ANSI B16.5, 150# SORF. - Standard
DIN - Optional
Casted or fabricated elbow with precise machined for minimum gap between propeller and casing.
Liner type casted casing also available.
The shaft is of the wet type, which comes in contact with the pumped liquid.
BEARING
Oil lubrication - Standard
Max. Pump temperature 150°C
bearing arrangement consists of Single Row Angular Contact Ball Bearing and Spherical Roller Bearing. Oil Level Indicator is provided for oil level checking and maintaining.
Grease lubrication - Optional
Max. Pump temperature 150oC
The use of grease as a bearing lubricant is available as an option. Bearing are shielded and greased for life.
SEALING OPTIONAL
Stuffed Packing Box
Single / Double Mach. Seal with cartridge type arrangement
Other available as per request
ACCESSORIES
DRIVE
Direct
V-belt, Pulley Drive
Gear Box Drive
