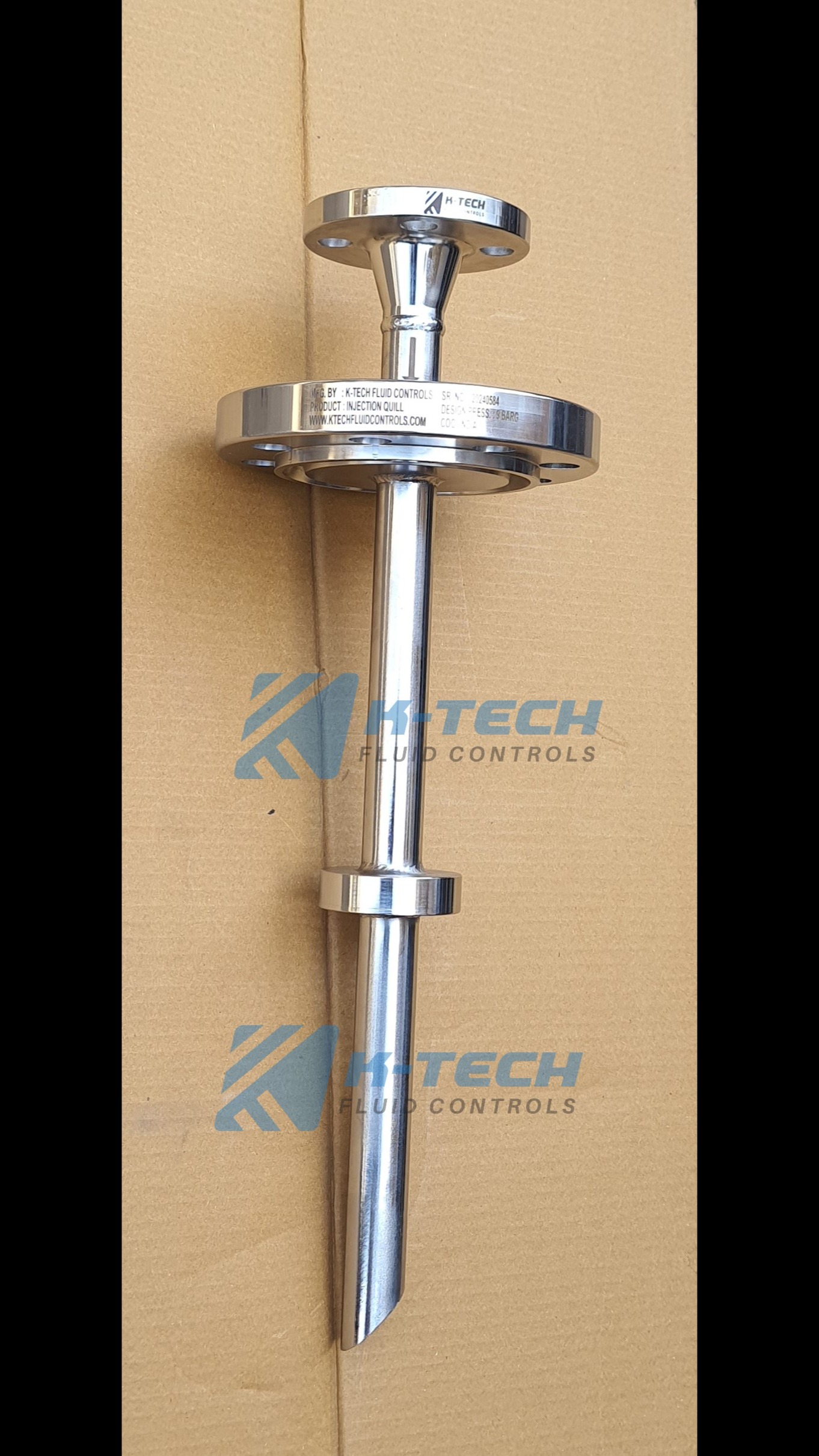

A chemical injection quill is a specialized device used in industrial processes to safely and efficiently introduce chemicals into a pipeline or tank. Its primary function is to ensure that the injected chemical is dispersed evenly into the center of the flowing fluid, preventing it from immediately clinging to the pipe walls and causing corrosion or other damage. Key Features and Components A chemical injection quill typically consists of a probe or stinger that extends into the pipeline, and an external assembly that connects to the chemical feed line. They are often equipped with safety features to prevent backflow and ensure proper operation. Probe/Stinger: The part of the quill that extends into the pipeline. Its length is designed to ensure the chemical is injected into the high-velocity, turbulent zone at the center of the flow, promoting better mixing. Check Valve: An essential component that prevents the process fluid from flowing back into the chemical feed line, which could contaminate the chemical supply or damage the dosing pump. Isolation Valves: These valves (often in a double block and bleed configuration) allow for safe maintenance or removal of the quill without shutting down the entire system. Retractable vs. Non-Retractable: Some quills are 'retractable' or 'retrievable, ' which means they can be inserted or removed while the system is still pressurized and running. This is a crucial safety and efficiency feature for continuous operations. Applications Chemical injection quills are used across a wide range of industries where precise chemical dosing is critical. Oil and Gas: Used to inject corrosion inhibitors, scale preventers, biocides, and demulsifiers into pipelines and processing equipment. Water Treatment: Essential for adding disinfectants (like chlorine), pH adjusters, and coagulants to maintain water quality. Power Generation: Used in boiler feedwater treatment to add oxygen scavengers and anti-scalants, and in flue gas treatment to neutralize harmful emissions. Chemical Processing: Allows for the precise addition of reactants and catalysts to improve production efficiency. Food and Beverage: Utilized for injecting sanitizing agents and preservatives to ensure product safety and hygiene. Installation and Maintenance Proper installation and regular maintenance are crucial for the safe and effective operation of a chemical injection quill. Installation Best Practices: Correct Placement: The quill should be installed in a location that provides easy access for maintenance and allows for effective mixing of the chemical with the fluid. Insertion Depth: The probe must extend to the center of the pipe's flow to ensure even distribution and prevent pipe wall erosion. Flow Direction: The quill should be installed in a way that the injected chemical is directed with the flow of the process fluid. Safety Features: Ensure that all safety features, like isolation valves and check valves, are correctly installed and oriented. Proper Tightening: Fittings and connections must be tightened to the manufacturer's specifications to prevent leaks. Maintenance: Regular Inspection: Periodically inspect the quill for signs of wear, such as corrosion, erosion, or cracking, especially on the tip and body. Cleaning: Over time, chemicals can cause deposits or clogging. Regular flushing and cleaning are necessary to maintain performance. Component Replacement: Seals, gaskets, and check valve springs are common wear-and-tear items that should be replaced on a schedule to prevent failures. Pressure Testing: After maintenance, the quill should be pressure-tested to ensure there are no leaks.
