Description
Product details

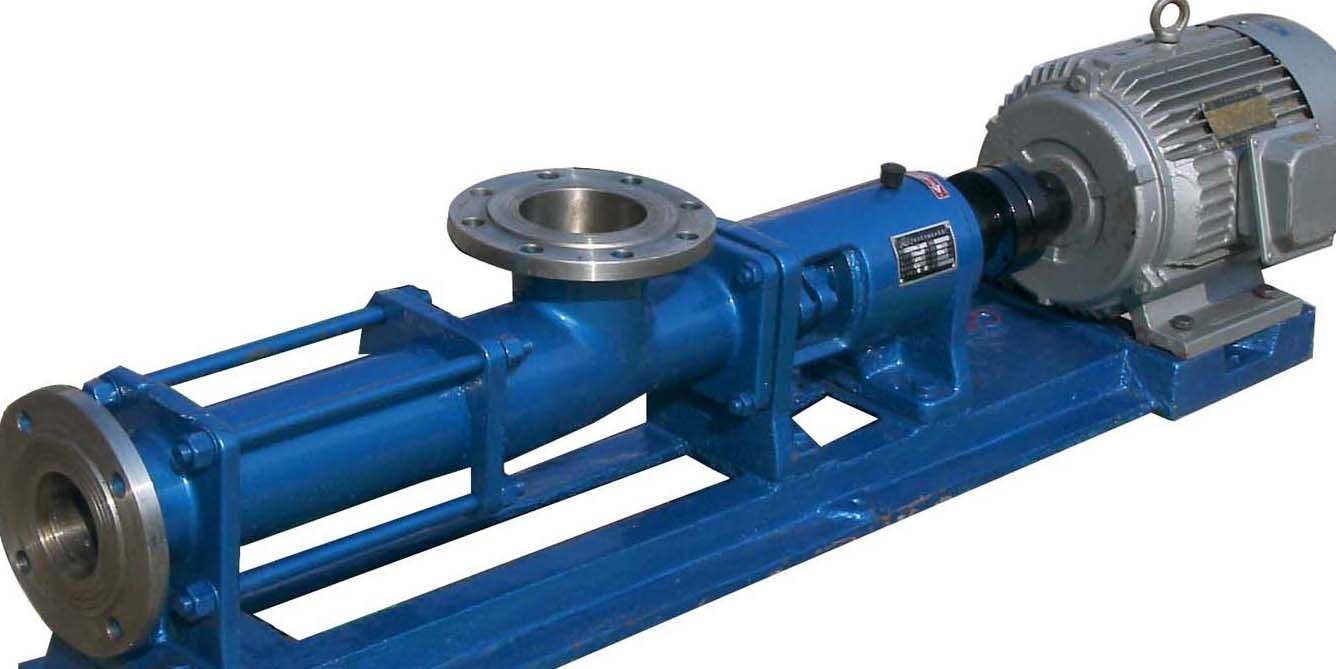

PROGRESSIVE CAVITY SCREW PUMP CAVITY SCREW PUMP Operating Range Capacity :Up to 145 M3/hr Head :Up to 250 mtr Discharge Size :Dn 25 to 150 mm Temperature :Up to 120°C Speed :Up to 600 rpm Pressure :Up to 25 kg/cm2 Applications Sewage effluent & Water treatment plant. Sugar, Starch, Cement, Pulp & Paper industries. Ceramics, Chemicals, Fertilizers, Soap & Detergents, Cosmetics. Paint, Varnish, Petrochemicals, Vegetable Oils, Mining, Steel, Rubber. Construction, Manmade fibers, Fisheries, Oil exploration. Pharmaceuticals, Cattle feed, Brewery & Distillery, Power. Dairies, Winery, Food & Beverages, Abattoir & Meat processing. Plantations, Fruit processing, Dye stuff, Textiles Materials SS-316, SS-316 L, SS-304, SS-304L, duplex stainless steel, super duplex stainless steel, cast bronze, cast steel, cast iron, hastalloy-B & C, alloy-20 etc Stator: Natural, Nitrile, High Nitrile, EPDM, Chloro-sulphonated Rubber, Fluoroelastomer Rotor: Case hardened steel, alloy steel, HCP, stainless steel, up / HCP Features Single rotating element, progressing cavities are generated which deliver a uniform, metered & non-pulsating flow. Head developed is independent of the rotational speed, where as the capacity is proportionate to the speed. Inherently self-priming, the pumps can work on snore & do not require a foot valve. Can Handle solids in suspension or medias containing a high percentage of solids. Suction lift capabilities of up to 9.5 mtr. and effective even in high vacuum conditions. Minimum degradation of shear-sensitive media & can also Handle highly viscous materials having pseudo-plastic characteristics. Due to the reversible rotation capabilities, progressive cavity pumps can perform with equal efficiency in either direction. Rotors turn inside a resilient stator & thus generate little noise. SCREW PUMP MANUFACTURERS IN VADODARA SCREW PUMP MANUFACTURERS IN SURAT SCREW PUMP MANUFACTURERS IN VALSAD SCREW PUMP MANUFACTURERS IN BHARUCH SCREW PUMP MANUFACTURERS IN VAPI SCREW PUMP MANUFACTURERS IN ANKLESHWAR SCREW PUMP MANUFACTURERS IN AHMEDABAD SCREW PUMP MANUFACTURERS IN CHATRAL SCREW PUMP MANUFACTURERS IN GUJARAT SCREW PUMP MANUFACTURERS IN INDIA SCREW PUMP MANUFACTURERS IN MAHARSHTRA SCREW PUMP MANUFACTURERS IN VATVA SCREW PUMP MANUFACTURERS IN BHAVNAGAR SCREW PUMP MANUFACTURERS IN SURENDRANGAR SCREW PUMP MANUFACTURERS IN HALOL SCREW PUMP MANUFACTURERS IN PANOLI SCREW PUMP MANUFACTURERS IN KUTCH
