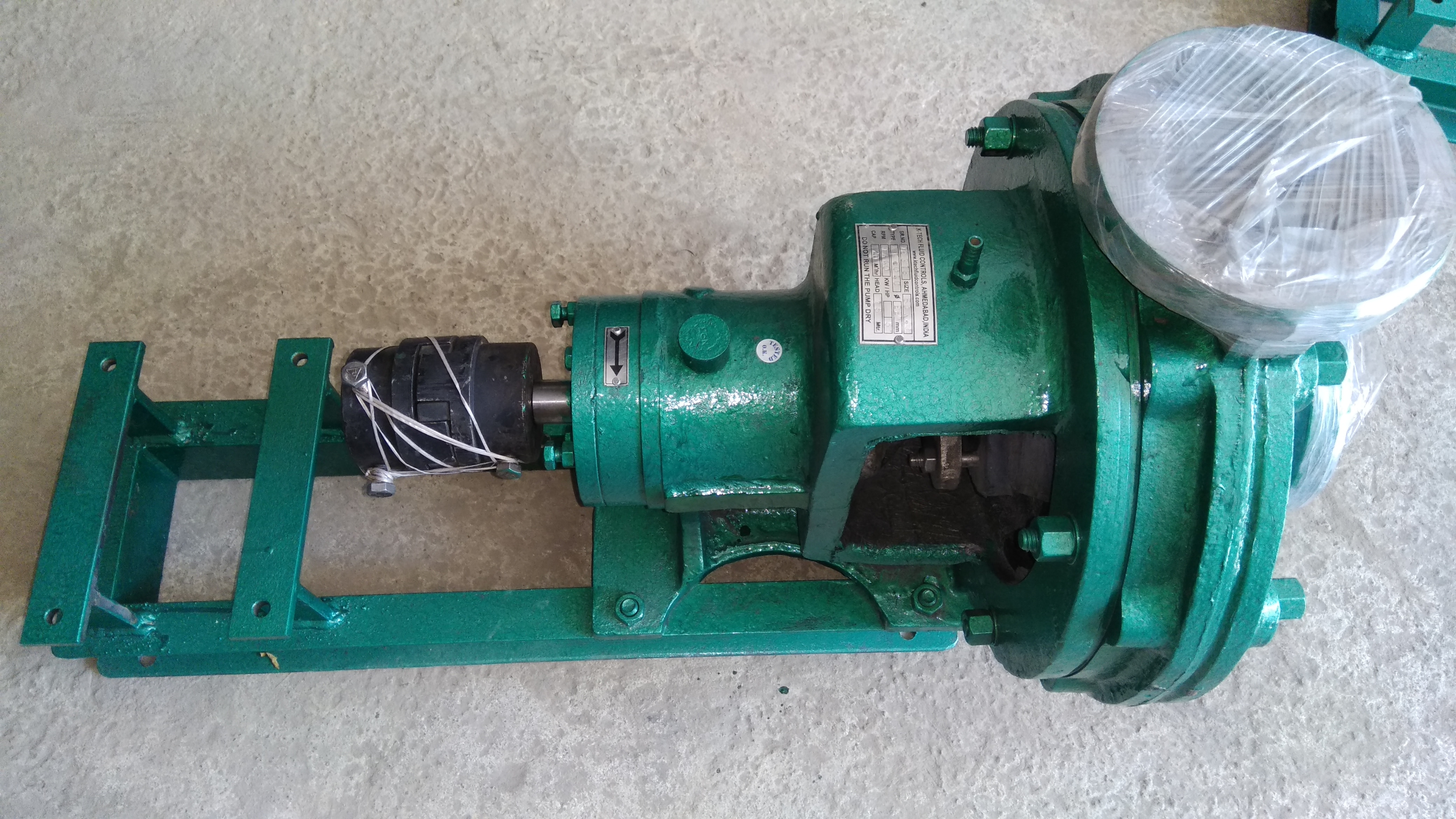

RUBBER LINING PUMP CAPACITY: - UP TO 150M3/H HEAD :- UP TO 35 MTRS. DELIVERY SIZE :- UP TO 125 MM SPECIFIC GRAVITY :- UP TO 2 LIQUID TEMP. :- UP TO 80°C (WITH NATURAL RUBBER) UP TO 120°C (WITH SYNTHETIC RUBBER) HARD RUBBER :- UP TO 65 ‘ SHORE D SCALE SOFT RUBBER :- U4P TO 60’ SHORE A SCALE MATERIAL OF CONSTRUCTION PUMP CASING, WEAR PLATE SEAL COVER AND IMPELLER INSET :- RUBBER LINING ON CAST IRON OR DUCTILE IRON HARD RUBBER :- NATURAL RUBBER [EBONITE] SOFT RUBBER (ON REQUEST) :- BUTYL RUBBER / NITRITE RUBBER / NEOPRENE RUBBER SHAFT :- STAINLESS STEEL 316 L OR EN – 8 SHAFT SLEEVE :- STAINLESS STEEL 316 L OR ALLOY – 20 SHAFT SEAL :- ACID RESISTANT GLAND PACKING (PTFE) » APPLICATION › CAUSTIC SODA, BRINE, HYDROFLUORIC ACID, AMMONIUM SALT SOLUTION, BLEACHING SOLUTION › EFFLUENTS, CALCIUM HYPOCHLORITE, POTASSIUM CHLORIDE, SODIUM CHLORINE, ZINC CHLORIDE, › PHOSPHORIC ACID, NITRIC ACID, DYES & CHEMICALS WITH FREE CHLORINE, SODIUM BISULPHATE, › MOTHER LIQUOR, AMMONIA SOLUTION, CHLOR – ALKALI ELECTROLYSIS, DEMONIZED WATER, RIVER WATER, › FILLER PRESSURE FOR DYES, SEA WATER, LIME PUMP IN CPW PLATE, STAPLE FIBER PLANT (BLEACH LIQUOR), › DILUTE H2SO4 WATER TREATMENT, CYCLONE FEED, COAL & POWER PLANT ASH, ABRASIVE SILT, › RIVER-BED GRAVEL, FLY ASH SLURRY, IRON ORE SLURRY, COPPER OX CHLORIDE POTASSIUM HYPOCHLORITE, › SUSPENSION WITH FINE ABRASIVE SOLID » SPECIAL FEATURES › CENTRIFUGAL SINGLE STAGE BACK PULL OUT DESIGN. › CONTACT PARTS ARE LINED WITH NATURAL RUBBER (EBONITE), BUTYL RUBBER OR NEOPRENE RUBBER. › SIMPLE EXTERNAL AXIAL ADJUSTABLE FOR IMPELLER ADJUSTMENT. › SIMPLE AXIAL ADJUSTABLE TO MAINTAIN IMPELLER CLEARANCE. › POWER INPUT 3 HP / 5 HP / 7.5 HP / 10 HP / 15 HP / 20 HP WITH 940 RPM / 1440 RPM / 1880 RPM / 2200 RPM › CAPACITY UP TO 125 M3/H AND 35 MTRS HEAD › PUMP IS MOUNTED ON HEAVY STEEL STRUCTURE FRAME (BASE PALTE) › PUMP IS WELL ALIGNED WITH ELECTRIC MOTOR BY RIGID COUPLING › BETTER INTERCHANGEABILITY OF PARTS › EASY MAINTENANCE › STURDY CONTRACTION RUBBER LINING PUMP MANUFACTURER AHMEDABAD RUBBER LINING PUMP MANUFACTURER GUJARAT RUBBER LINING PUMP MANUFACTURER INDIA RUBBER LINING PUMP MANUFACTURER BHARUCH RUBBER LINING PUMP MANUFACTURER VAPI RUBBER LINING PUMP MANUFACTURER VALSAD RUBBER LINING PUMP MANUFACTURER VADODARA RUBBER LINING PUMP MANUFACTURER KUTCH RUBBER LINING PUMP MANUFACTURER BHAVNAGAR RUBBER LINING PUMP MANUFACTURER SURAT
