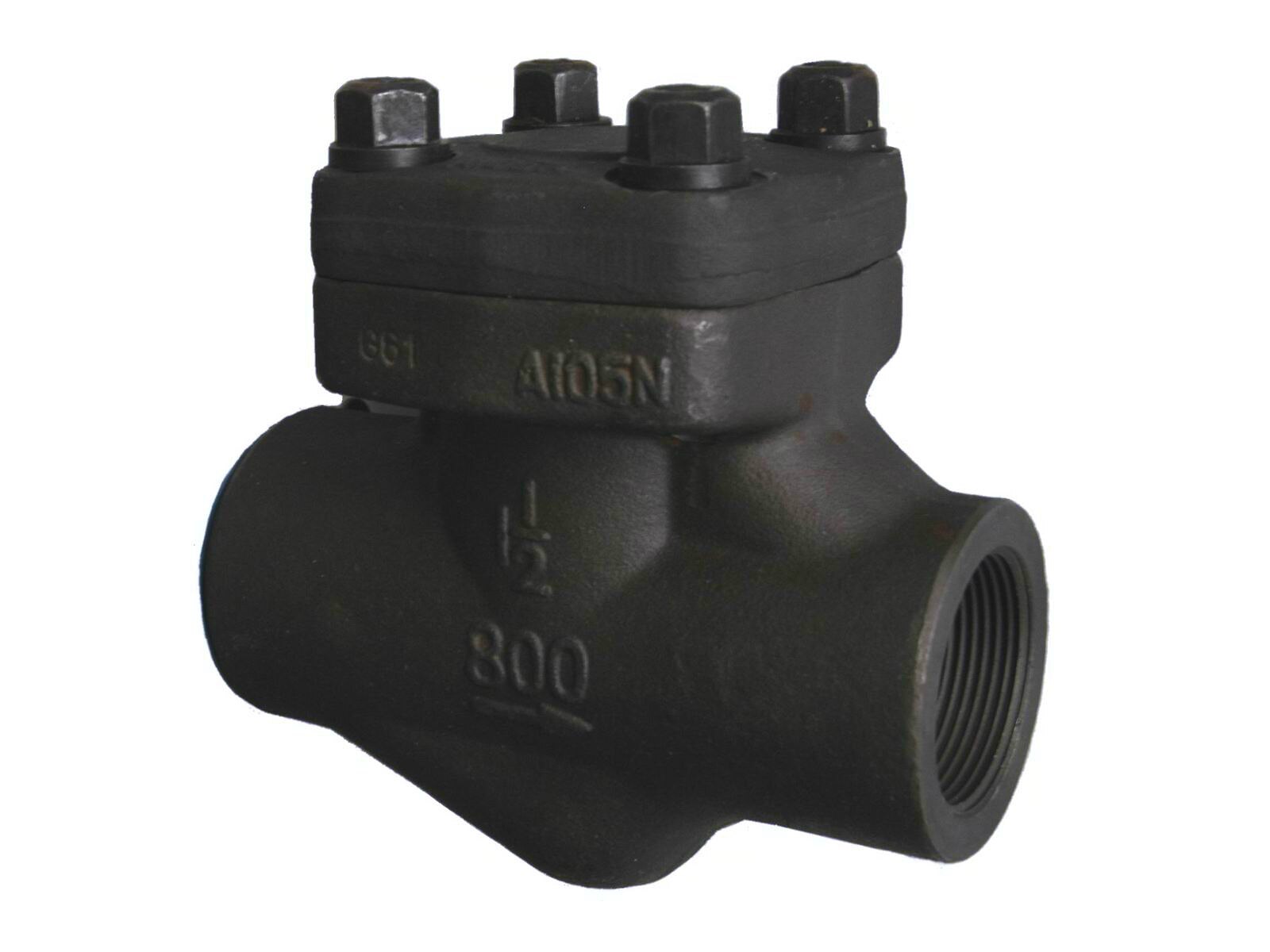

FORGED LIFT CHECK VALVE K-TECH Forged Steel Lift Check Valves are manufactured as per ISO 15761/API 602 Standard and Tested to API 598 Standard. K-TECH Valve designed piston type horizontal lift check valve incorporating self-cushioning effect. K-TECH manufacturing range covers Regular Port and Standard Port both types of Forged Steel Check Valve. Regular Port non return valves have fast delivery or ready stock, for Standard Port check valve do manufacturing on order basis. K-TECH Valves offer Forged Steel Check Valve in wide range of Body Material like ASTM A 105 - Forged Carbon Steel, ASTM A 182 F304/F304L/F316/F316L - Forged Stainless Steel, ASTM A 182 F11/F22 - Alloy Steel to suit industrial application. K-TECH Forged Steel Lift Check valves are available under any Third party inspection also. For High Pressure & Temperature application Stellated ST6 Face Seat available. Forged Check Valve available is Threaded End, Socket Weld End, Butt Weld End and Flanged End Connection. For Flanged End Forged Steel Lift Check Valve flanges will be a welded with a valve body not integral forged. Design & Testing International Standard of Forged Steel Lift Check Valve Design Standard ISO 15761/API 602 Inspection &Standard API 5988 Flange End Standard ASME B16.5/ For Face To Face ASME B16.10 End Connection Flanged End to ASME B16.5, 150#/300#/600#(FLANGES WELDED/FABRICATED TO BODY) Screwed - Threaded End to ASME B1.20.1 Socket Weld End to ASME B16.11 Butt Weld End to ASME B16.25 Manufacturing Size Range 1/2"(DN15) to 2"(DN50) Pressure Rating of Valve 150#/300#/600#/800#/1500#/2500# Valve Operation Hand Wheel Operated Material of Construction (MOC) for Forged Steel Lift Check Valve Body & Bonnet ASTM A 105 - Forged Carbon Steel ASTM A 182 F304/F304L - Forged Stainless Steel ASTM A 182 F316/F316L - Forged Stainless Steel ASTM A 182 F11/F22 - Alloy Steel Trims / Working Parts ASTM A 276 T - 410(SS-410 - 13% Cr. Steel) ASTM A 276 T - 304/304L(SS-304/SS-304L) ASTM A 276 T - 316/316L(SS-316/SS-316L) Stellited - ST6 Gland Packing PTFE Virgin/Carbon Filled Teflon Grafoil Ring/Graphite Ring Gasket SS 304/316 Spiral Wound with Graphite Filled Bolts/Stud & Nuts ASTM A 193 GR. B7/B8/B8M/A 194 GR. 2H Salient Features of Forged Steel Lift Check Valve 1 Body & Bonnet made from high quality forging. 2 The Forgings are precision machined for high performance 3 Ground Finish Stem 4 Self-Aligning Two Piece Gland 5 Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position. Special Option of Forged Lift Check Valve 1 Other Material of Construction (F304/F316/F304L/F316L/F11/F22) 2 Flanged End, Flange Welded to Body, Rating 150#/300#/600# 3 Butt Weld (Welded Neck)/Socket Weld/Screwed(BSP/NPT) Connection 4 Seat & Disc Stellited ST6 Hard Face 5 Special Trims on Request Application 1Power Plants & Process Industries 2 Petrochemical Plants & Refineries 3 Fertilizers Plants 4 Process & General Industries 5 Sugar Industries & Distillery Plants 6 Water, Steam, Gas, Oil & other Non-aggressive media 7 Other application on request
